Discover the Tiandy TC-C32QN 2MP Fixed Bullet Camera with 2MP resolution, ColorMaker technology, and built-in mic. Weatherproof IP67 rating, IR range up to 50m, and PoE power efficiency for superior outdoor surveillance.
Discover the Tiandy TC-C32QN 2MP Fixed Bullet Camera with 2MP resolution, ColorMaker technology, and built-in mic. Weatherproof IP67 rating, IR range up to 50m, and PoE power efficiency for superior outdoor surveillance.

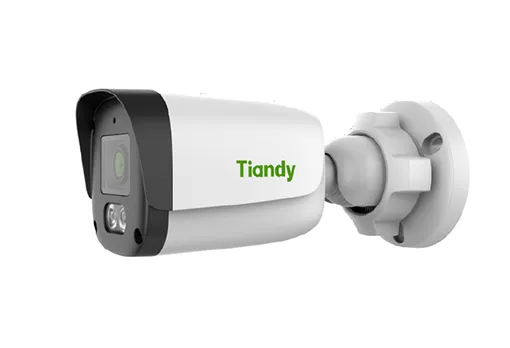

The Tiandy TC-C32QN 2MP fixed bullet camera is a top choice for those seeking efficient security surveillance solutions. With its sleek metal and plastic housing, this device offers durability and superior functionality. Its ability to deliver high-quality images, even in low light conditions, makes it a standout product in the competitive world of security cameras. This article will take a deep dive into the features and benefits of this remarkable security device.
1. High-Resolution Imaging
The Tiandy TC-C32QN camera boasts an impressive 2MP resolution, providing crystal-clear 1920x1080 images at 30fps. This high-definition clarity ensures that no detail goes unnoticed, whether you're monitoring a commercial or residential property.
2. Advanced Compression Technology
To enhance storage efficiency, the Tiandy TC-C32QN utilizes S+265, H.265, and H.264 video compression technologies. These formats significantly reduce file size while maintaining the integrity of the video quality. This means you can store more footage without compromising on clarity or performance.
3. Low-Light Performance
One of the camera’s standout features is its exceptional low-light capabilities. With a color sensitivity of 0.02Lux at F1.6 (AGC ON) and zero lux in black and white mode when IR is active, this camera excels in capturing images even in complete darkness. The IR range extends up to 50 meters, ensuring clear visuals during nighttime or low-light scenarios.
1. Robust Housing
The Tiandy TC-C32QN camera is constructed with a combination of metal and plastic housing, offering a robust design that withstands various environmental conditions. This durability makes it suitable for both indoor and outdoor use.
2. Weatherproof Performance: IP67 Rating
With an IP67 rating, the camera is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. This makes it ideal for outdoor installations where weather conditions could otherwise affect the performance of less durable models.
3. Wide Operating Temperature Range
The Tiandy TC-C32QN camera operates efficiently in extreme temperature ranges, from -30°C to 60°C (-22°F to 140°F). It can handle harsh environmental conditions while delivering consistent performance, ensuring reliable surveillance throughout the year.
Another valuable feature of this camera is its built-in microphone. The addition of audio monitoring can greatly enhance the overall security setup, allowing you to capture sound alongside video footage. This feature is crucial in environments where audio cues can provide critical information for security purposes.
1. PoE Support
This camera supports Power over Ethernet (PoE), following the IEEE 802.3af standard. PoE allows the camera to receive both power and data through a single Ethernet cable, simplifying installation and reducing the need for additional power sources. The maximum power consumption with PoE is 7W, making it an energy-efficient option for long-term use.
2. Versatile Power Supply Options
For users who prefer a traditional power setup, the Tiandy TC-C32QN also supports a DC12V±25% power supply. The maximum power consumption in this mode is 6.5W, which remains within an efficient range for security cameras of this caliber.
The Tiandy TC-C32QN 2MP fixed bullet camera stands out as a reliable and feature-packed option for modern security systems. Its high-resolution imaging, exceptional low-light performance, and weatherproof design make it suitable for various surveillance applications. Whether you need to secure a residential property or a commercial site, this camera offers the necessary features to ensure safety and reliability.
If you're looking for a dependable surveillance solution that combines durability, advanced technology, and energy efficiency, the Tiandy TC-C32QN is an excellent choice.
Camera | |
Image Sensor | 1/2.8"CMOS |
Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
Shutter Time | 1s~1/100000s |
Day&Night | IR-cut filter with auto switch (ICR) |
Smart IR | Yes |
WDR | DWDR |
S/N | >39dB |
Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
Lens | |
Lens Type | Fixed focal lens |
Focal Length | 4mm |
Lens Mount | M12 |
Aperture Range | F1.6 |
Aperture Type | Fixed |
Field of View | 87.7°(H); 46.8°(V); 98.6°(D) |
DORI Distance | Detect:55.1m Observe:21.8m Recognize:11.0m Identify:5.5m |
Illuminator | |
IR LEDs | 2 |
IR Distance | Up to 50m |
Wavelength | 850nm |
White LEDs | 2 |
Whitelight Distance | 15m |
Compression Standard | |
Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
Video Bit Rate | 32k~6Mbps |
Audio Compression | G.711A/G.711U/ADPCM_D |
Audio Sampling Rate | 8kHz/32kHz/48kHz |
Image | |
Max. Resolution | 2MP,1920×1080@30fps |
Main Stream | PAL:25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC:30fps(1920×1080, 1280×720, 640×480, 704×480) |
Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
BLC | Yes |
HLC | Yes |
AGC | Yes |
3D DNR | Yes |
White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
ROI | 8 rectangular static areas |
OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
Privacy Mask | 4 black static areas |
Defog | Yes |
Feature | |
General Alarm | Motion Detection; Mask Alarm |
Exceptions Alarm | IP Address Conflict |
Linkage Method | Trigger Warmlight; Trigger Capture; Alarm Output |
Video Analytics | Tripwire; Perimeter |
Rules of Behavior Analyse In 1 Scene | 2 |
Network | |
Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; FTP |
System Compatibility | P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
Remote Connection | ≤2 |
Client | Easy7 VMS |
Moblie Client | EasyLive Plus |
Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
Interface | |
Communication Interface | 1*RJ-45 (10/100 Base-T) |
Built-in Mic | Yes |
General | |
Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
Operating Temperature | -30℃~60℃(-22℉~140℉) |
Operating Humidity | ≤95%RH |
Storage Temperature | -30℃~60℃(-22℉~140℉) |
Storage Humidity | 10%~95%RH(non-condensing) |
Power Supply | DC12V±25%,Max. 6.5W; PoE:IEEE 802.3af,Max. 7W |
Protection | Surge4000V; ESD6000V; IP67 |

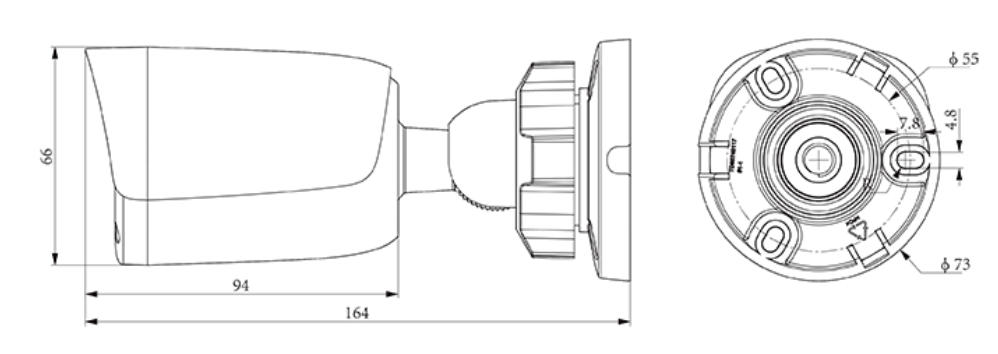

Boundary Dimensions | 164(L)73(W)73(H)mm |
Package Dimensions | 180(L)90(W)95(H)mm |
GrossWeight | 0.3Kg |
